Products – HMI Systems

Explore all of our products

And Custom Solutions

-OUR PRODUCTS

Explore Them All

Learn more about all of the products that HMI has to offer. We pride our selves on being a one stop shop in almost every aspect. All of our products are made in house here in Lakeland Florida.

Keypads

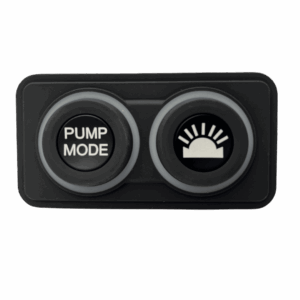

PKU1200M

Compact two button Keypad with full LED technology. Also sealed to IP68 for harsh environments.

PKU2400MS

This multi-switch pad uses square inserts and LED backlit icons for clean modern reliability.

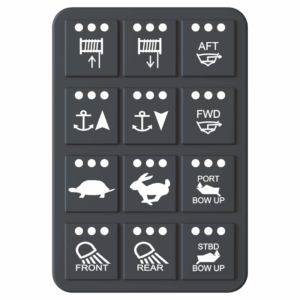

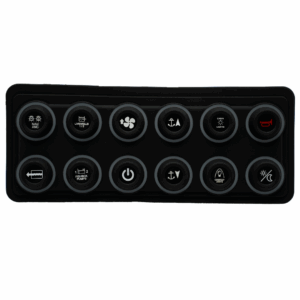

PKU2600M

Using two, six button rows, this keypad supports advanced LED effects using CAN Software.

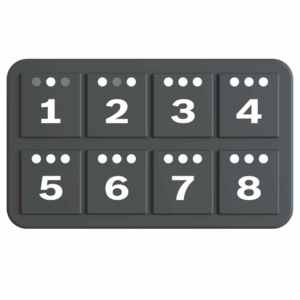

PKE2400

Eight fixed rubber etched keys provide high visibility even in low light environments.

PKE4300

IP68 silicon overlay, UV protection, and salt spray protection protects this keypad in any environment.

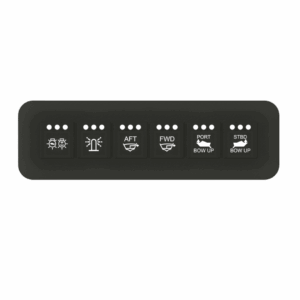

SLK1500

The new SLK is a low-profile interface in a six-position panel mount, with three customizable RBG indictors on each button.

Rocker Switches

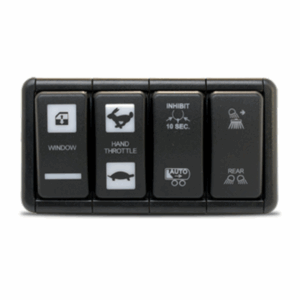

482 CRM Series

The 482CRM series is a programmable multi-color LED rocker switch module, designed to operate within a Controller Area Network (CAN) j1939.

Custom Software For Any Platform

CANconnect

CANconnect is an integrated tool for programming HMI Systems CAN modules. Custom message generation allows the user to make the module work with their system rather than having to make their system work with the module. All modules support dynamic configuration on the fly with embedded flash memory. Modules can also be fully tested independent of the system they are operating in.

CANcreate

CANcreate is a GUI and logic generation software used to program HMI Systems embedded CAN display modules. The software allows the user to create both visual elements and the logic that controls them in one tightly integrated package. A visual schematic entry approach means no programming is required. Full design simulation and custom graphics are supported.

CANvis

CANvis leverages the power of CANcreate to rapidly build and deploy a custom app onto a mobile platform without needing to learn Xcode or Android’s SDK. CANvis is platform agnostic allowing the same GUI developed in CANcreate to deploy to Android or iOS. The CANvis framework empowers engineers to quickly debug and make changes to their app simply by transferring published files to their mobile device.

Display Interfaces

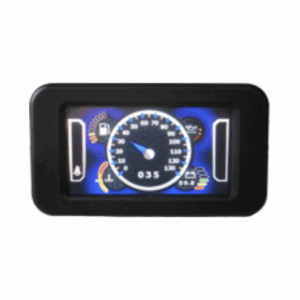

550MDI

The 550MDI (Media Display Interface) is a CAN based 4.3” 262K color 480 x 272 TFT High Brightness LCD with touchscreen. The 550MDI supports dual independent CAN transceivers and a LIN transceiver for providing a gateway between multiple in-vehicle networks.

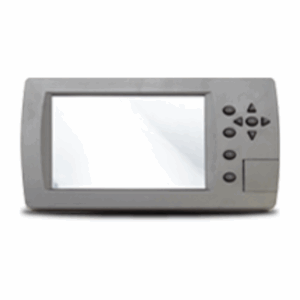

700MDI

The 700MDI includes up to 4 GB of available mem- ory stored on an internal micro SD card. Using the USB port all data stored on the card can be accessed through a PC as a mass storage device.

Frequently
Asked Questions

Have questions? Then you are in the right place. Below you will find quick and clear answers to things people ask us most frequently. If your question is not answered please feel free to reach us by clicking the button below.

Can you do custom artwork for inserts/actuators?

Yes, we do custom artwork with no set up fees. We require a .dxf or similar artwork file.

How fast can you provide prototypes?

We can provide prototypes of our current products within 2-3 weeks depending on material availability.

Do you offer expedite services for production orders?

We do offer expedited delivery.

Where can I purchase?

Contact sales@hmisystems.net
